Products Description

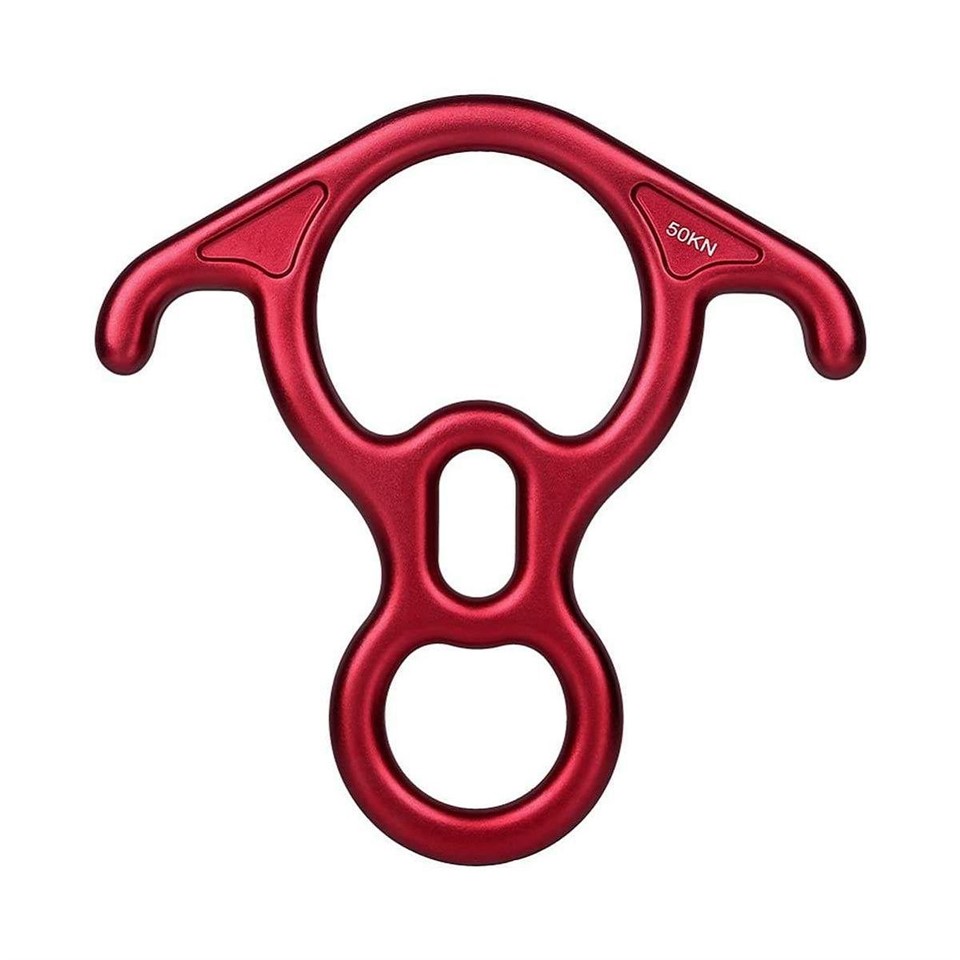

Figure 8 descender with ears
This Fusion Climb 8 descender is made of strength aluminum, finished with an anodized process. The bent ears seen on either side of the descender allows the user the ability to tie off the rope and use both hands freely. While still maintaining a safe and easy use.
This descender has a rated strength of 50kN, with dimension of 6.7" X 6.7".Black and red colors available.
Products Parameter
Figure 8 descender with ears
MDL:DZ-HWJ-002
Material:7075 aviation aluminum

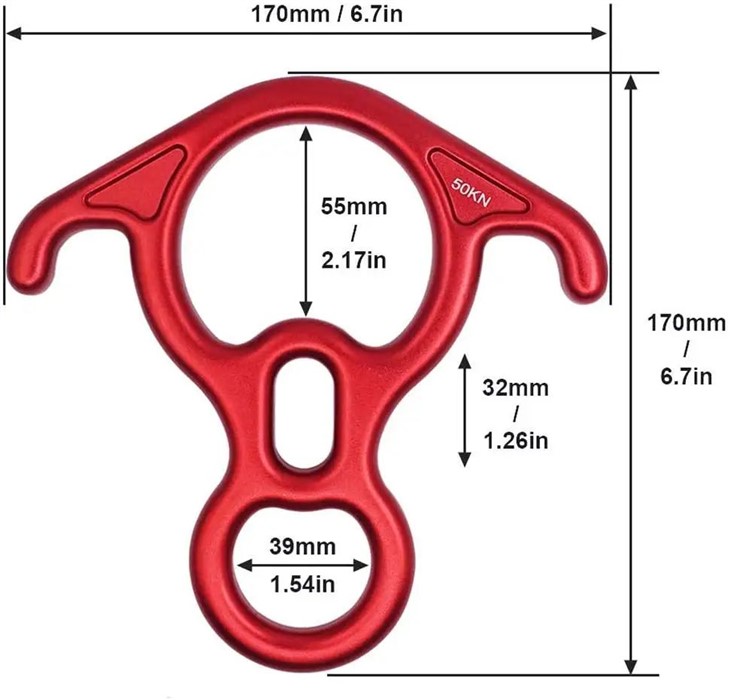

Size:170*170mm
Weight:305g
Color:Customizable
Minimum breaking strength:50kN
Meets or Exceeds:ANSI Z359.12-09
Products Application

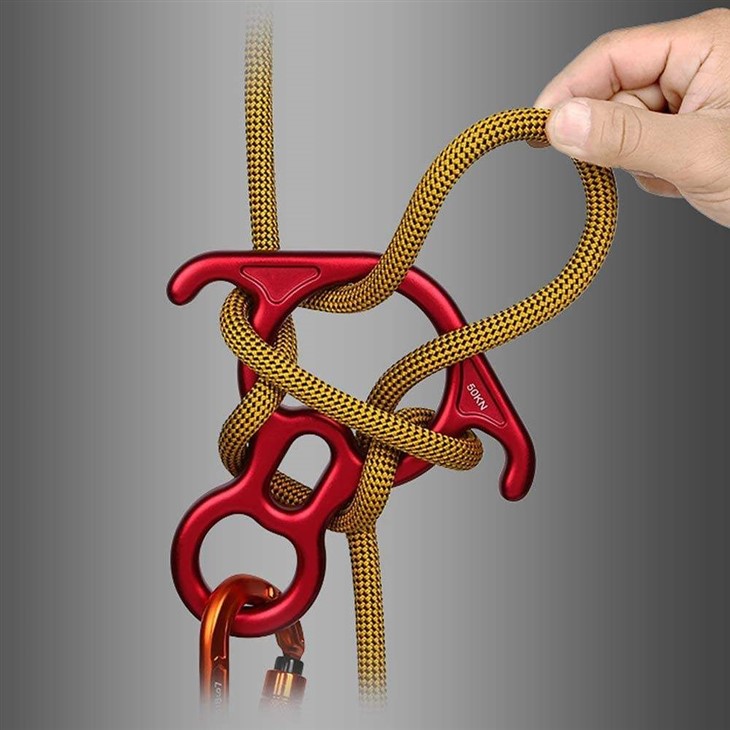

This is the way Figure 8 descender with ears normally used:
●Remove the device from the carabiner.
●Pass a bight of rope through the 'big' hole.
●Pull the bight over the small hole and allow it to locate in the shank of the device as the bight is pulled tight.
●Clip the 'small' hole of the device back to the carabiner (attached to the belay loop of the harness).
Products Details
Figure 8 descender with ears
Smooth surface rescue bent ear eight descender , the Anodizing finish increases the resistance to corrosion and wear, making for an exceptionally durable finish.
Product breaking loading are clearly printed on the product to facilitate user understanding.Logo can be engraved on the another size of the bent ear.

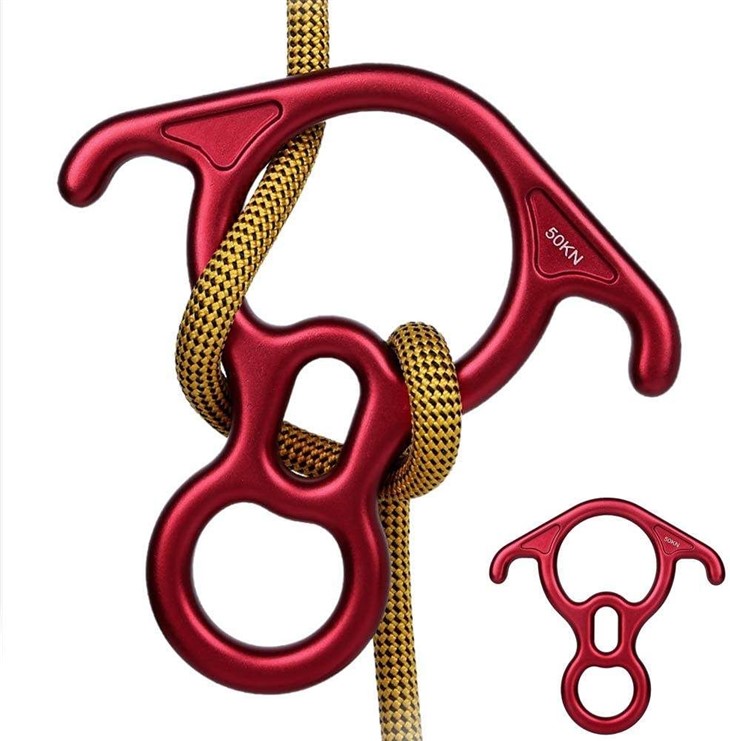

Rescue Figure 8's are designed with ears to keep the rope from sliding up the device and girth hitching around the device which can strand a climber midline until they can unweight the device
1.Keep Your Safety: It uses the friction between the rope and the Descender device to slow down the descent or brake. Extra thick with ears and belay slot will keep your safety, even in a rescue or emergency situation.
2.Superior Braking Resistance: Breaking strength 11,000 lbf (50KN/5000kg). Allows for smooth rope action while descending or belaying, offers superb control on rope.
3.Figure 8 Descender: Big Wall Climbings Terminal 8 with Ears is an improvement over standard figure 8 devices with improved breaking and safety features.
4.EASY LOCK-OFF: With bent-ear, locking yourself off with both hands free will be much easier and safer.
5.It Applies To: Suitable for Mountain Climbing, Rock Climbing, Ice Climbing, Rescue, Working-At-Height, Technical Rope Rescue, Climbers, Cavers and Sport rappelers.
